VR(T) time decay and term adjusted Vega columns in Risk Navigator (SM)

Background

Risk Navigator (SM) has two Adjusted Vega columns that you can add to your report pages via menu Metrics → Position Risk...: "Adjusted Vega" and "Vega x T-1/2". A common question is what is our in-house time function that is used in the Adjusted Vega column and what is the aim of these columns. VR(T) is also generally used in our Stress Test or in the Risk Navigator custom scenario calculation of volatility index options (i.e VIX).

Abstract

Implied volatilities of two different options on the same underlying can change independently of each other. Most of the time the changes will have the same sign but not necessarily the same magnitude. In order to realistically aggregate volatility risk across multiple options into a single number, we need an assumption about relationship between implied volatility changes. In Risk Navigator, we always assume that within a single maturity, all implied volatility changes have the same sign and magnitude (i.e. a parallel shift of volatility curve). Across expiration dates, however, it is empirically known that short term volatility exhibits a higher variability than long term volatility, so the parallel shift is a poor assumption. This document outlines our approach based on volatility returns function (VR(T)). We also describe an alternative method developed to accommodate different requests.

VR(T) time decay

We applied the principal component analysis to study daily percentage changes of volatility as a function of time to maturity. In that study we found that the primary eigen-mode explains approximately 90% of the variance of the system (with second and third components explaining most of the remaining variance being the slope change and twist). The largest amplitude of change for the primary eigenvector occurs at very short maturities, and the amplitude monotonically decreases as time to expiration increase. The following graph shows the main eigenvector as a function of time (measured in calendar days). To smooth the numerically obtained curve, we parameterize it as a piecewise exponential function.

Functional Form: Amplitude vs. Calendar Days

To prevent the parametric function from becoming vanishingly small at long maturities, we apply a floor to the longer term exponential so the final implementation of this function is:

where bS=0.0180611, a=0.365678, bL=0.00482976, and T*=55.7 are obtained by fitting the main eigenvector to the parametric formula.

Inverse square root time decay

Another common approach to standardize volatility moves across maturities uses the factor 1/√T. As shown in the graph below, our house VR(T) function has a bigger volatility changes than this simplified model.

Time function comparison: Amplitude vs. Calendar Days

Adjusted Vega columns

Risk Navigator (SM) reports a computed Vega for each position; by convention, this is the p/l change per 1% increase in the volatility used for pricing.  Aggregating these Vega values thus provides the portfolio p/l change for a 1% across-the-board increase in all volatilities – a parallel shift of volatility.

However, as described above a change in market volatilities might not take the form of a parallel shift.  Empirically, we observe that the implied volatility of short-dated options tends to fluctuate more than that of longer-dated options.  This differing sensitivity is similar to the "beta" parameter of the Capital Asset Pricing Model.  We refer to this effect as term structure of volatility response.

By multiplying the Vega of an option position with an expiry-dependent quantity, we can compute a term-adjusted Vega intended to allow more accurate comparison of volatility exposures across expiries. Naturally the hoped-for increase in accuracy can only come about if the adjustment we choose turns out to accurately model the change in market implied volatility.

We offer two parametrized functions of expiry which can be used to compute this Vega adjustment to better represent the volatility sensitivity characteristics of the options as a function of time to maturity. Note that these are also referred as 'time weighted' or 'normalized' Vega.

Adjusted Vega

A column titled "Vega Adjusted" multiplies the Vega by our in-house VR(T) term structure function. This is available any option that is not a derivative of a Volatility Product ETP. Examples are SPX, IBM, VIX but not VXX.

Vega x T-1/2

A column for the same set of products as above titled "Vega x T-1/2" multiplies the Vega by the inverse square root of T (i.e. 1/√T) where T is the number of calendar days to expiry.

Aggregations

Cross over underlying aggregations are calculated in the usual fashion given the new values. Based on the selected Vega aggregation method we support None, Straight Add (SA) and Same Percentage Move (SPM). In SPM mode we summarize individual Vega values multiplied by implied volatility. All aggregation methods convert the values into the base currency of the portfolio.

Custom scenario calculation of volatility index options

Implied Volatility Indices are indexes that are computed real-time basis throughout each trading day just as a regular equity index, but they are measuring volatility and not price. Among the most important ones is CBOE's Marker Volatility Index (VIX). It measures the market's expectation of 30-day volatility implied by S&P 500 Index (SPX) option prices. The calculation estimates expected volatility by averaging the weighted prices of SPX puts and calls over a wide range of strike prices.

The pricing for volatility index options have some differences from the pricing for equity and stock index options. The underlying for such options is the expected, or forward, value of the index at expiration, rather than the current, or "spot" index value. Volatility index option prices should reflect the forward value of the volatility index (which is typically not as volatile as the spot index). Forward prices of option volatility exhibit a "term structure", meaning that the prices of options expiring on different dates may imply different, albeit related, volatility estimates.

For volatility index options like VIX the custom scenario editor of Risk Navigator offers custom adjustment of the VIX spot price and it estimates the scenario forward prices based on the current forward and VR(T) adjusted shock of the scenario adjusted index on the following way.

  • Let S0 be the current spot index price, and
  • S1 be the adjusted scenario index price.
  • If F0 is the current real time forward price for the given option expiry, then
  • F1 scenario forward price is F1 = F0 + (S1 - S0) x VR(T), where T is the number of calendar days to expiry.

Ordervorschau - Auswirkungen auf Risikogebühren überprüfen

IB stellt Ihnen eine Funktion zur Verfügung, mit der Kontoinhaber überprüfen können, ob und in welchem Maße sich eine Order auf die voraussichtlichen Risikogebühren auswirken würde. Diese Funktion sollte vor der Übermittlung einer Order verwendet werden, damit Sie bereits vorab über die resultierenden Gebühren informiert sind. So haben Sie die Möglichkeit, Änderungen an der Order vorzunehmen, noch bevor Sie diese übermitteln, um ggf. die anfallenden Gebühren zu verringern oder zu aufzuheben.

Sie können diese Funktion aktivieren, indem Sie mit der rechten Maustaste die Orderzeile anklicken. Daraufhin öffnet sich die Ordervorschau. Dieses Fenster enthält einen Link mit der Bezeichnung „Auswirkungen auf Risikogebühren prüfen“ (s. rote Markierung in Abbildung I).

Abbildung I



Wenn Sie diesen Link anklicken, wird das Fenster erweitert. Sie sehen nun eine Übersicht über ggf. anfallende Risikogebühren für die aktuellen Positionen, sowie die Veränderung der Gebühr bei Ausführung der angezeigten Order und die Gesamtgebührensumme nach Ausführung der Order (s. rote Markierung in Abbildung II unten). Diese Beträge werden weiter in die jeweiligen Produktklassen aufgeschlüsselt, für die die Gebühren anfallen (z. B. Aktien, Öl). Kontoinhaber können dieses Fenster einfach schließen, ohne die Order zu übermitteln, falls die Auswirkungen auf die Risikogebühren sich als zu groß erweisen.

Abbildung II



In Artikel KB2275 erhalten Sie Informationen zur Verwendung des RiskNavigator von IB für die Verwaltung und Vorabberechnung von Risikogebühren. Informationen zur Kontrolle der Gebühren über das Kontoübersichtsfenster erhalten Sie in Artikel KB2344.

Nutzung des RiskNavigator zur Vorausberechnung von Risikogebühren

Der RiskNavigator von IB enthält eine spezielle Szenario-Funktion, mit deren Hilfe ermittelt werden kann, ob und in welchem Maße sich eine Veränderung in einem Portfolio auf die Höhe der Risikogebühr auswirken würde. Im Folgenden werden die Schritte zur Erstellung eines „Was-wäre-wenn“-Portfolios erläutert, entweder auf Basis angenommener Veränderungen in einem bestehenden Portfolio oder auf Basis eines gänzlich neu entworfenen Portfolios, einschließlich Berechnung der resultierenden Risikogebühren. Bitte beachten Sie, dass diese Funktion in der TWS Version 951 und höher verfügbar sind.

Schritt 1: Ein neues „Was wäre wenn“-Portfolio öffnen
Öffnen Sie in der klassischen Ansicht der TWS-Plattform das Menü Analyse-Tools, wählen Sie den Menüpunkt RiskNavigator aus und klicken Sie auf Neues Was-wäre-wenn-Portfolio öffnen (Abbildung 1).

Abbildung 1



Schritt 2: Ausgangsportfolio definieren
Ein Pop-up-Fenster öffnen sich (Abbildung 2), in dem Sie dazu aufgefordert werden, festzulegen, ob Sie ein hypothetisches Portfolio auf Basis Ihres aktuellen Portfolios erstellen oder ein neu angelegtes Portfolio als Basis verwenden möchten. Klicken Sie auf die Schaltfläche „Ja“, um bestehende Positionen in das neue Was-wäre-wenn-Portfolio zu laden.

Abbildung 2


Wenn Sie auf die Schaltfläche „Nein“ klicken, wird das „Was-wäre-wenn“-Portfolio ohne Positionen geöffnet (Abbildung 3). Wählen Sie den Reiter zu der Produktklasse aus, für die Sie hypothetische Positionen anlegen möchten (z. B. Aktien).

Abbildung 3



Schritt 3: Positionen hinzufügen
Sie können eine Position zu Ihrem „Was-wäre-wenn“-Portfolio hinzufügen, indem Sie auf die grüne Zeile mit der Überschrift „Neu“ klicken und dann das Symbol des gewünschten Basiswerts eingeben (Abbildung 4), den Produkttyp definieren (Abbildung 5) und die Positionsgröße festlegen (Abbildung 6)

Abbildung 4


Abbildung 5


Abbildung 6


Schritt 4: Risikogebühr berechnen
Die voraussichtliche Risikogebühr auf Basis Ihres „Was-wäre-wenn“-Portfolios können Sie ermitteln, indem Sie das Menü Berichte und dann den Menüpunkt Risikogebühr auswählen (Abbildung 7). Ein Pop-up-Fenster öffnet sich, in dem die voraussichtliche Risikogebühr nach Produktklassen aufgeschlüsselt angegeben wird (Abbildung 8).


Abbildung 7



Abbildung 8





Informationen dazu, wie Sie die Risikogebühr über das Kontoübersichtsfenster kontrollieren können, erhalten Sie in Artikel KB2344. Informationen zur Verifizierung der Risikogebühr über das Ordervorschau-Fenster finden Sie in Artikel KB2276.

Order Preview - Check Exposure Fee Impact

IB provides a feature which allows account holders to check what impact, if any, an order will have upon the projected Exposure Fee. The feature is intended to be used prior to submitting the order to provide advance notice as to the fee and allow for changes to be made to the order prior to submission in order to minimize or eliminate the fee.

The feature is enabled by right-clicking on the order line at which point the Order Preview window will open. This window will contain a link titled "Check Exposure Fee Impact" (see red highlighted box in Exhibit I below).

Exhibit I



Clicking the link will expand the window and display the Exposure fee, if any, associated with the current positions, the change in the fee were the order to be executed, and the total resultant fee upon order execution (see red highlighted box in Exhibit II below).  These balances are further broken down by the product classification to which the fee applies (e.g. Equity, Oil). Account holders may simply close the window without transmitting the order if the fee impact is determined to be excessive.

Exhibit II



Please see KB2275 for information regarding the use of IB's Risk Navigator for managing and projecting the Exposure Fee and KB2344 for monitoring fees through the Account Window



Important Notes

1. The Estimated Next Exposure Fee is a projection based upon readily available information.  As the fee calculation is based upon information (e.g., prices and implied volatility factors) available only after the close, the actual fee may differ from that of the projection.

2. The Check Exposure Fee Impact is only available for accounts that have been charged an exposure fee in the last 30 days

Using Risk Navigator to Project Exposure Fees

Übersicht:

IB's Risk Navigator provides a custom scenario feature which allows one to determine what effect, if any, changes to their portfolio will have to the Exposure fee. Outlined below are the steps for creating a what-ifportfolio through assumed changes to an existing portfolio or through an entirely new proposed portfolio along with determining the resultant fee.   Note that this feature is available through TWS build 971.0i and above.

Step 1: Open a new “What-if” portfolio

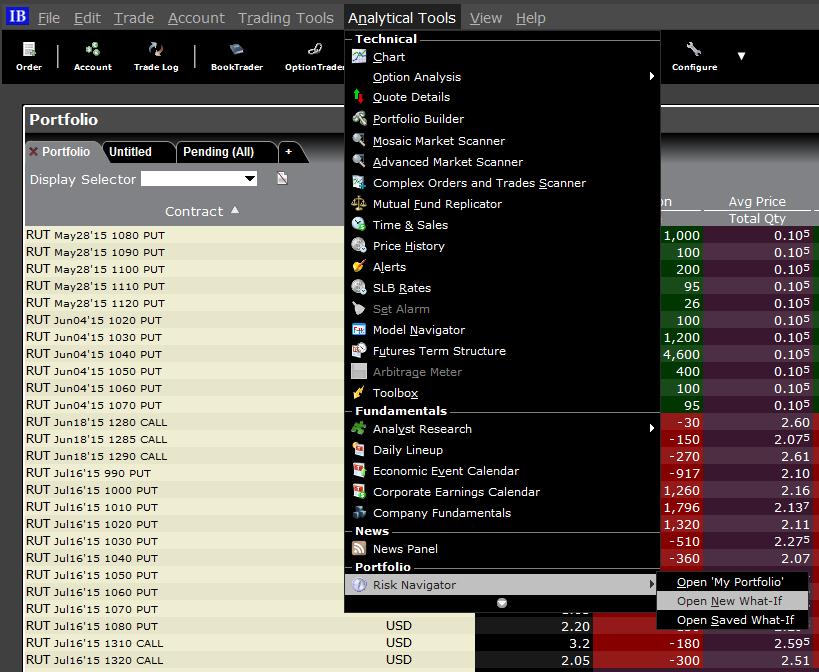

From the Classic TWS trading platform, select the Analytical Tools, Risk Navigator, and then Open New What-If menu options (Exhibit 1).

Exhibit 1


From the Mosaic TWS trading platform, select the New Window, Select Risk Navigator, and then Open New What-If menu options.

Step 2: Define starting portfolio

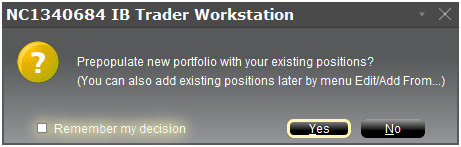

A pop-up window will appear (Exhibit 2) from which you will be prompted to define whether you would like to create a hypothetical portfolio starting from your current portfolio or a newly created portfolio.  Clicking on the "yes" button will serve to download existing positions to the new “What-If” portfolio.

Exhibit 2

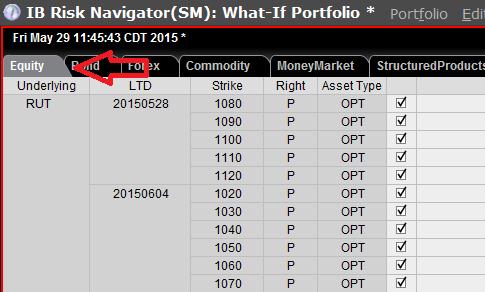

Clicking on the "No" button will open up the “What-If” Portfolio with no positions.

Step 3: Add Positions

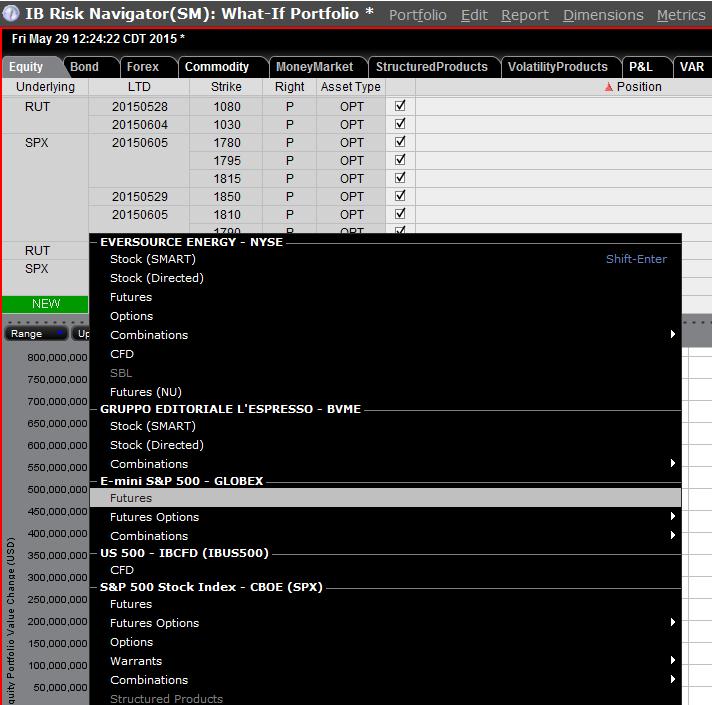

To add a position to the what-ifportfolio, click on the green row titled "New" and then enter the underlying symbol (Exhibit 3), define the product type (Exhibit 4) and enter position quantity (Exhibit 5).

Exhibit 3


Exhibit 4


Exhibit 5

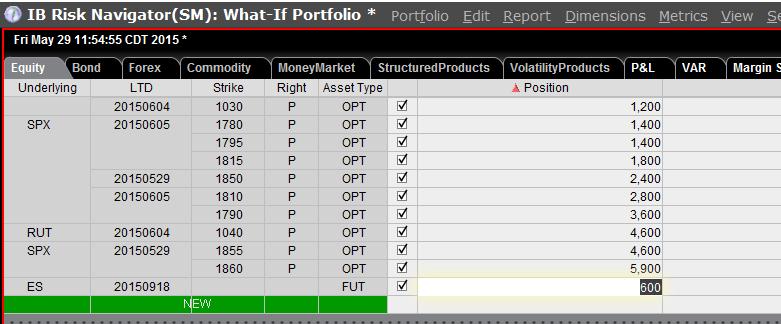

You can modify the positions to see how that changes the margin.  After you altered your positions you will need to click on the recalculate icon () to the right of the margin numbers in order to have them update.  Whenever that icon is present the margin numbers are not up-to-date with the content of the what-ifPortfolio.

Step 4: Determine Exposure Fee

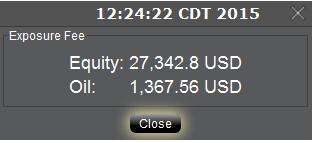

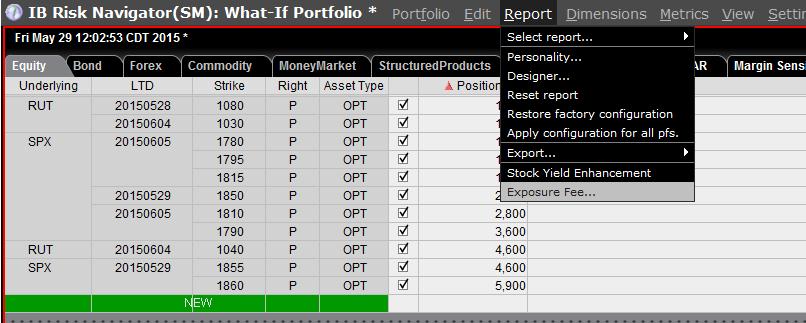

To view the projected correlated exposure fee based upon your what-ifportfolio, click on the Report and then Exposure Fee menu options (Exhibit 6).  Once selected, a new Exposure Fee tab will be added, which will display the projected exposure fee broken down by primary risk factors (Exhibit 7).

Exhibit 6


Exhibit 7

You can modify the positions to see how that changes the Exposure Fee.  After you altered your positions you will need to click on the refresh button to the right of the Last Calculation Time.  Whenever the warning icon () is present the Exposure Fee Calculations numbers are not up-to-date with the content of the what-ifPortfolio.


Please see KB2344 for information on monitoring the Exposure fee through the Account Window and KB2276 for verifying exposure fee through the Order Preview screen.

Important Note

1. The on-demand Exposure Fee check represents a projection based upon readily available information.  As the fee calculation is based upon information (e.g., prices and implied volatility factors) available only after the close, the actual fee may differ from that of the projection.

Can I set a maximum dollar exposure for my account?

Unless an account holds solely long stock, bond, option or forex positions which have been paid for in full (i.e., no margin) and/or contains limited risk derivative positions such as option spreads, it is at risk of losing more than the original investment.

In the case of portfolios where the risk is indeterminable, there is no mechanism whereby the account holder can specify, at the portfolio level, a maximum dollar threshold of losses which, if reached, would limit their liability. IB does, however, provide a variety of tools and settings designed to assist account holders with managing and monitoring their exposure, including specialized order types, alerts and the Risk Navigator. A brief overview of each is provided below:

Order Types

Account holders may manage exposure on an individual trade level through several order types designed to limit risk. These order types include, but are not limited to: Stop, Adjustable Stop, Stop Limit, Trailing Stop and Trailing Stop Limit Orders. All of these order types allow you to specify an exit level for your individual positions based on your risk tolerance. For example, an account holder long 200 shares of hypothetical stock XYZ at an average price of $20.00 seeking to limit their loss to $500.00 could create a Stop Limit order having a Stop Price of $18.00 (the price at which a limit sell order is triggered) and a Limit Price of $17.50 (the lowest price at which the shares would be sold).  It's important to note, however, that while a Stop Limit eliminates the price risk associated with a Stop order where the execution price is not guaranteed, it exposes the account holder to the risk that the order may never be filled even if the Stop Price is reached.  For instructions on creating a Stop Limit order, click here.



Alerts

Alerts provide account holders the ability to specify events or conditions which, if met, trigger an action. The conditions can be based on time, trades that occur in the account, price levels, trade volume, or a margin cushion. For example, if the account holder wanted to be notified if their account was nearing a margin deficiency and forced liquidation, an alert could be set up to send an email if the margin cushion fell to some desired percentage, say 10% of equity. The action may consist of an email or text notification or the triggering of a risk reducing trade. For instructions on creating an Alert, click here.

Risk Navigator

The Risk Navigator is a real-time market risk management platform contained within the TraderWorkstation, which provides the account holder with the ability to create 'what-if' scenarios to measure exposure given user-defined changes to positions, prices, date and volatility variables which may impact their risk profile. For information on using an Risk Navigator, click here.

IB's Risk Navigator Session 3 - What-if Scenario

How to create a What-if Scenario using IB's Risk Navigator

Click here to watch: Risk Navigator Session 1 - Introduction

Click here to watch: Risk Navigator Session 2 - Custom Scenario

For detailed information on how to create What-if scenarios please refer to the TWS Online User's Guide.





IB's Risk Navigator Session 2 - Custom Scenario

How to create a custom scenario using IB's Risk Navigator.

Click here to view: IB's Risk Navigator Session 1 - Introduction

Click here to view: IB's Risk Navigator Session 3 - What-if Scenario

For detailed information please refer to the TWS Online User's Guide.



IB's Risk Navigator - Introduction

A Brief Introduction to Interactive Broker's Risk Navigator
