Disclosure Regarding Interactive Brokers Price Cap Notices

Regulators expect brokerage firms to maintain controls designed to prevent the firm from submitting orders to market centers that create a risk of disruptive trading (e.g., the risk of sudden, transient price moves).

To comply with these expectations, Interactive Brokers implements various price filters on customer orders. Those price filters may, in certain circumstances, price cap customer orders in order to avoid market disruption, and those Price Caps will generally be in a % range from a reference price range calculated by IB. (The range of the Price Cap varies depending on the type of instrument and the current price.)

Although the price caps are intended to balance the objectives of trade certainty and minimized price risk, a trade may be delayed or may not take place as a result of price capping. More information is available in Interactive Broker’s Order Routing and Payment for Order Flow Disclosure.

If a customer’s order(s) are price capped by IB’s systems, that customer will either receive (i) real-time notification of those price cap(s) in Trader Workstation or via the API or FIX tag 58 (for FIX users); and/or (ii) a daily FYI message containing a digest of the first 10 order(s) that were price capped the prior day, the initial price cap(s) for those order(s) (if applicable), and the Price Cap Range(s) for further Price Cap(s) of those order(s).

Customers may opt out from receiving future FYI Messages by clicking the relevant opt-out link within an FYI Message. By opting out from receiving these future FYI Messages, a customer:

  • Agrees to waive any further notifications from Interactive Brokers about the application of the firm’s Price Caps to that customer’s order(s); and
  • Acknowledges that he or she understands that his or her orders may be price-capped in the future, but that the customer does not wish to be notified again about the application of any Price Caps to any of his or her orders.



Possible Alerts during the TWS installation or update

Overview:

IBKR's Trader Workstation (TWS) is a global trading system enabling clients to use a suite of online trading tools. The TWS can be installed on Windows, Mac OS X and Linux, and it requires the presence of a Java Runtime Environment (JRE). Therefore, when you install the TWS, it also downloads the necessary Java files in order to run using a Java Virtual Machine (JVM).

Sometimes, during the installation or update process of the TWS, software such as Antivirus applications will show an alert and prevent the process to complete. The warning and other messages in this case can safely be ignored, and you can complete the installation of the trading platform.



Table of content



Downloading the TWS installer and update patches

The TWS installers available in the download areas of ibkr.com or IBKR regional web sites are sealed and digitally signed using all the safety procedures required by the industry standards and do not contain any malicious code or process. The same industry standard practices have been used for the TWS update patches, which are automatically downloaded and installed when launching the TWS (if and only if there is an update available). Nevertheless, if you have received an alert, we recommend you to be cautious. Should you intend to keep the TWS installation file on your machine for future use, you should make sure that the same precautions for the protection of data from viruses and malware are applied to it.



Why do I receive a warning when I install the TWS or when the TWS automatic update runs?

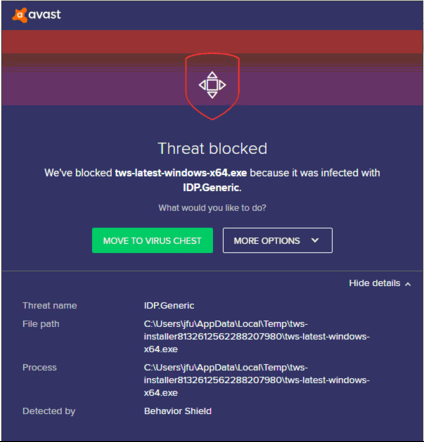

You might see an alert (similar to Figure 1 but not limited to) and your security system would wait for your input on how to process the suspicious file. You usually have the option to quarantine the file, delete it, ignore it once or create a permanent exception for it.

Please note that your antivirus might autonomously quarantine or delete the TWS installer file or some of his components without asking for your confirmation and without showing you any warning. Nevertheless, this should only happen if you have preset your antivirus to specifically react in this way.

Figure 1.



What should I do when I receive a warning?

In case you receive a warning during the TWS installation or update, we recommend the following steps:

1. Delete the TWS installer and download it again from the IBKR main or regional web site

a) Delete the TWS installer file already present on your computer and then delete it as well from your Trash (empty your Trash)

b) From the table below, click on the TWS download area correspondent to your location

Location TWS download area
US
https://www.ibkr.com
Asia / Oceania
https://www.interactivebrokers.com.hk
India
https://www.interactivebrokers.co.in
Europe
https://www.interactivebrokers.co.uk
https://www.interactivebrokers.eu

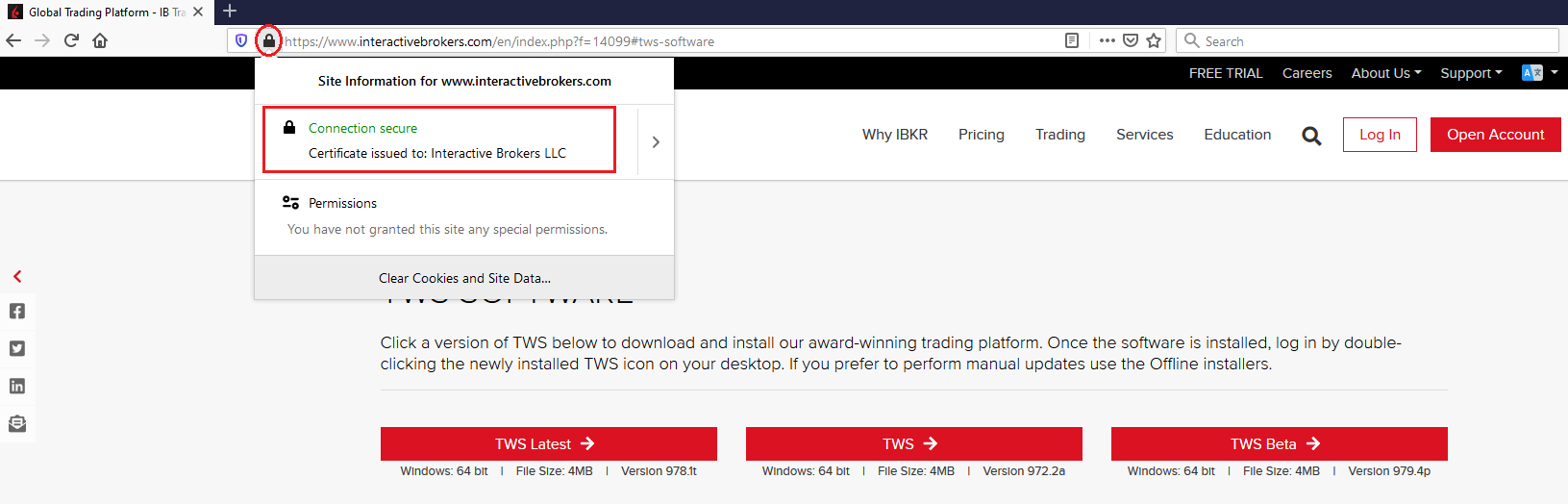

c) Check the website certificate. Most Internet browsers will immediately alert you in case the site certificate is invalid, compromised or expired. Nevertheless, if you want to check manually the validity of the site certificate, click on the padlock close to the address (URL) and make sure the Connection is reported as secure and no security warning are present (see Figure 2 below).

Figure 2.

d) Click on the button labeled with the TWS version you wish to use and download again the TWS installer



2. Check the digital signature of the TWS installer file you have downloaded

Normally you will immediately receive a security warning in case the digital signature of a file is compromised. Nevertheless, if you wish to perform a manual check, proceed as follows, according to your Operating System:

For Windows

a) From the Windows file explorer, access your Downloads folder or the folder where you placed the TWS installer

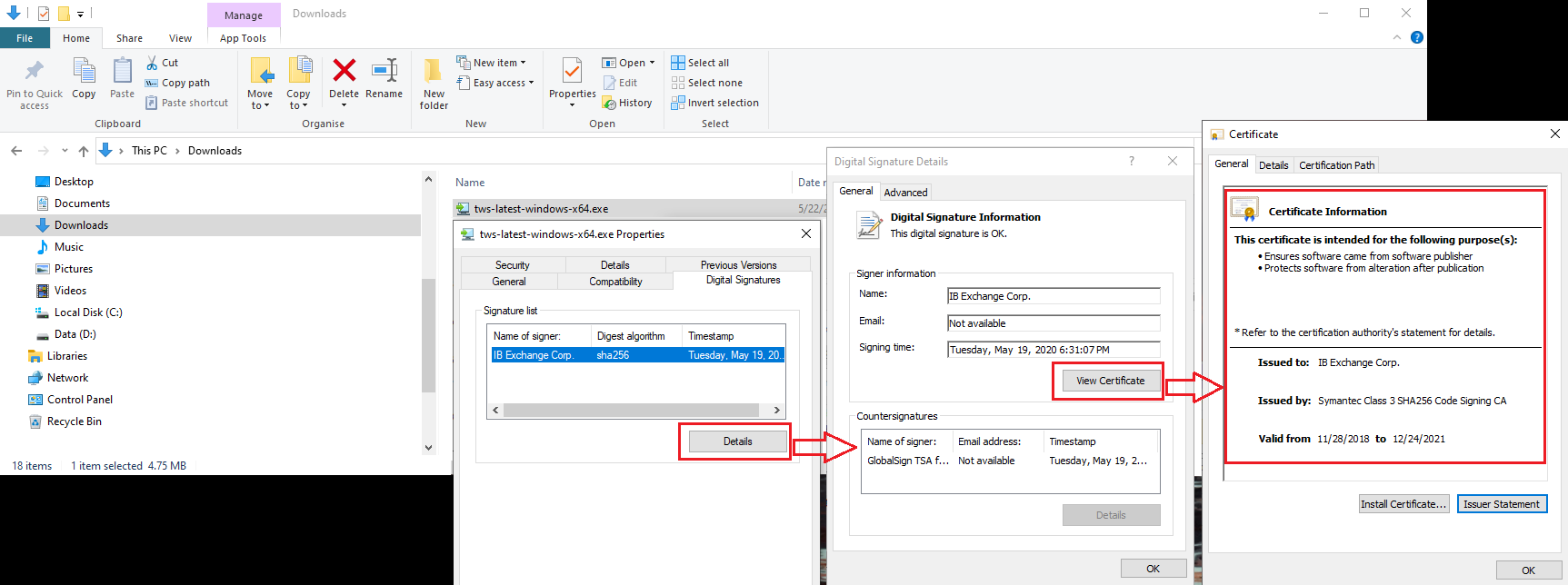

b) Right click on the TWS installer file, select Properties and then click on the tab "Digital Signatures"

c) Click on "Details" and on "View Certificate" to check the certificate status and signer. The legitimate signer is "IB Exchange Corp." (See Figure 3 below)

Figure 3.

For Mac OS X

a) Click on the magnifier glass (Spotlight Search) on the top right of your screen and type Terminal. From the search results, launch the Terminal app

b) Type cd Downloads and press Enter

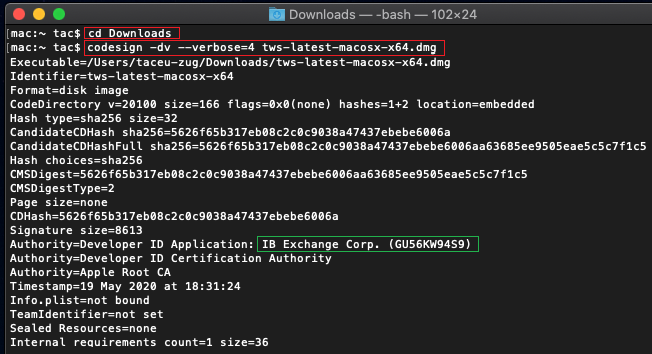

c) Type codesign -dv --verbose=4 tws-latest-macosx-x64.dmg and press Enter. Please notice that the name of the file (tws-latest-macosx-x64.dmg) may differ according to the TWS version you decided to download. If needed, replace the file name in the command with the appropriate one

d) Check the command output and make sure the "Developer ID Application" is "IB Exchange Corp." (see Figure 4 below)

Figure 4.





3. Run the TWS installer file you have downloaded

Once you have downloaded again the TWS installer and after you made sure the file is original (points 1. and 2. above), you can proceed with the installation. Should you still receive a warning from your antivirus, you can reasonably consider it as a false positive and ignore it.  Should you need guidance on this step, please proceed directly to the next section.



How can I signal an Alert as false positive?

All modern security systems allow the creation of exceptions, precisely in order to address false positive cases.  An exception is a rule forcing the antivirus engine not to scan a specific file or process. That specific file or process will hence be deemed safe and no further alerts will be raised for it.

The procedure for creating an exception may vary, according to the security software you are using. You may be able to create a temporary or permanent exception directly from the alert pop-up or you may have to create one manually from a specific section in the main configuration panel.

If you are unsure of the procedure, we recommend you to consult your antivirus documentation.

Once you have set an exception for the TWS installer file or for the TWS updater process, those will be no longer blocked and will be able to complete their respective tasks successfully.



What else can I do if I have doubts or if my system behaves abnormally?

If you have reasons to believe your machine may be compromised or infected, we recommend performing a full system scan. Usually you can right click on the antivirus icon present on the bottom taskbar (for Windows) or on the upper menu bar (for MacOS) and you will find the option to launch a full system scan. Alternatively, you may start that task from the main antivirus window. If you are unsure of the procedure, we recommend you to consult your antivirus documentation.





Technical Background



How does my security system scan the files I download from the Internet?

Modern antivirus and anti-malware engines base their threats recognition on:

Signature-based scanning: the antivirus scanner searches for a specific pattern of bytes that was previously catalogued as malicious or at least suspicious. The antivirus may check as well file signatures (called hash) against a database of known threats (called virus definitions).

Analysis of behavior: the antivirus engine detects specific actions which individually may not represent a threat but, when correlated together, resemble the usual activity of a malicious software (e.g. the ability of a code to replicate or hide itself, download additional files from the Internet, contact external hosts over the Internet, modify the Operating System registry) This type of scan is designed to detect previously unknown computer threats.

Heuristic detection: the scanner de-compiles the code or runs it within a virtual, restricted environment. It then classifies and weights the actions performed by the code against a predefined, behavior based, rule set.

Cloud-based protection and machine learning: those are relatively new techniques. The file that needs to be analyzed is sent to the antivirus / security system vendor cloud where sophisticated algorithms perform a deep analysis of the code authenticity and behavior.

Are those scan methods infallible?

Modern threats are very sophisticated and, like biological viruses, can mutate their code and their signatures. Moreover, new malwares and exploits are created every day and spread rapidly over the Internet. The threat recognition methods mentioned above are therefore not infallible but can guarantee a high percentage of malware recognition when combined together.

While signature based techniques are very successful in recognizing known threats and less prone to false positives, they are not so efficient in recognizing unknown malware or mutations of existing ones. In this area, the behavioral and heuristic methods perform much better although they are more prone to false positives since their detection is not based on bare code matching but on a certain degree of interpretation and hence uncertainty.

The term "false positive" is used when a security system classifies an innocuous file or process as malware.





Reference:

Alternative Streaming Quotes for US Equities

Overview:

The SEC Vendor Display Rule requires that brokers give clients access to the NBBO at the point of order entry. In order to provide users with free live streaming market data, we cannot display this free stream when entering an order without the client subscribing to the paid NBBO.

Background:

Under the Rule 603(c) of Regulation NMS (Vendor Display Rule), when a broker is providing quotation information to clients that can be used to assess the current market or the quality of trade execution, reliance on non-consolidated market information as the source of that quotation would not be consistent with the Vendor Display Rule.

Therefore and according to FINRA's enforcement of the SEC rule, any client of a broker that is purchasing real-time quotes must buy the NBBO real-time services when making trading decisions.

All clients have access to streaming US equity quotes from the four CBOE exchanges and IEX at no charge. Since this data does not include all markets, we cannot show this quote when entering parameters for a US stock quote. Order routing will not change based on what is shown on the screen. If one is subscribed to NBBO quotes or not, by default the trade will still take place with the assistance of the SMART order router designed to provide the best price for the order.

Please see the sample screenshots below from TWS Classic and TWS Mosaic for what occurs when placing an order without the NBBO streaming subscription for US equities.

TWS Classic:

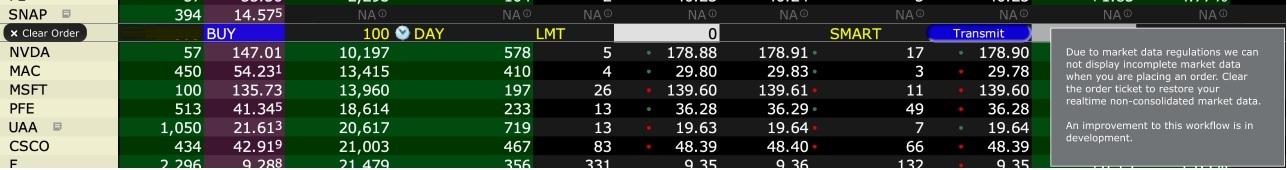

1. Screenshot of quotes showing without order entry line item

2. Screenshot of quote going blank when putting in the order entry line item

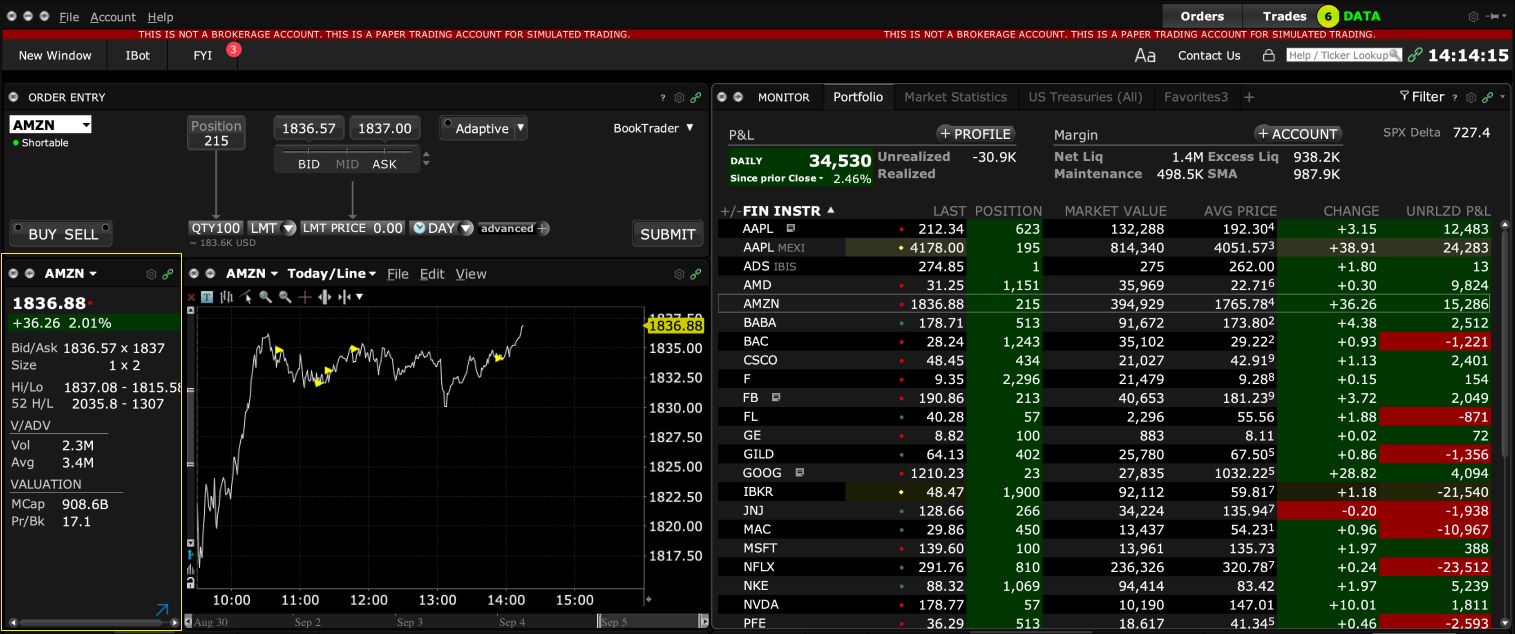

TWS Mosaic:

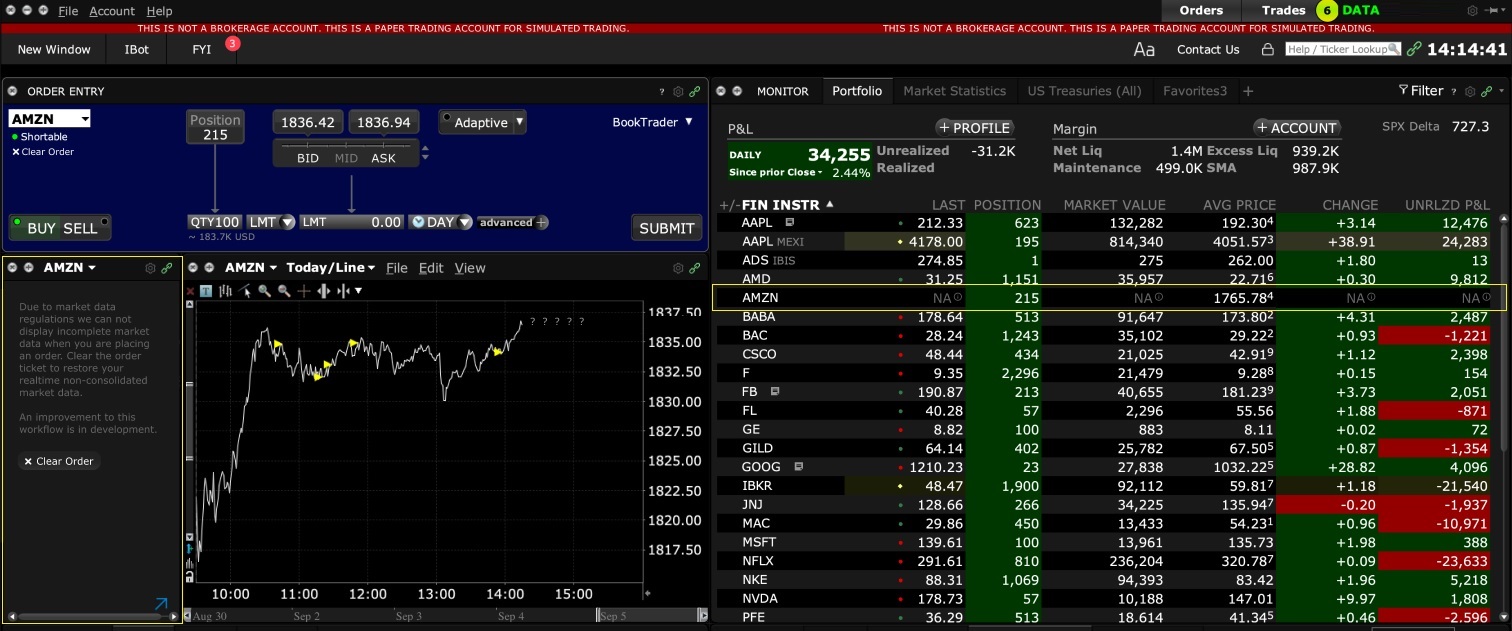

1. Screenshot of quotes showing without order entry line item

2. Screenshot of quote going blank when putting in the order entry line item

How to overcome the "Downloading settings from server failed" error

Background:

Store settings on server allows clients the ability to store their Trader Workstation (TWS) settings/configuration on the cloud and retrieve them at anytime from another computer. This feature allows you to use the layout of a specific user on two or more machines.

In some specific circumstances, the operation which stores/downloads the settings to/from the cloud may fail and the following error message may appear shortly after the TWS has loaded on the screen:





 How to overcome this error message?

 The underlying causes of this message are usually the following:

  • ACCESS TO THE LOCAL MACHINE IS BLOCKED: A security setup, such as a firewall or antivirus, prevents the access of this computer to the cloud storage. This prevents TWS from accessing the remote server, thus disallowing the settings file upload or download. Recommended workaround: set up an exception on the firewall or antivirus in order to exclude the TWS executable file (c:\Jts\tws.exe) or the entire TWS folder (C:\Jts) from the real time security scan. The procedure to set an exclusion may vary, according to the software you are using, therefore we recommend consulting the user guide or the on-line documentation of your specific security program.

  • ACCESS TO THE REMOTE SERVER IS BLOCKED: A firewall or proxy service blocks the communication with the cloud storage through the network on which this computer is. In this scenario, you (or your IT / Networking departments, in case you do not have the rights for such an operation) can modify the firewall or proxy settings to allow the computer to communicate with the cloud server s3.amazonaws.com on the TCP port 443. For additional details about the hosts/ports which needs to be allowed for the proper TWS operation, please see as well the section "DESKTOP TWS" of KB2816. Please refer to the documentation of your specific software in order to create specific rules for your firewall or proxy system.



See KB2323 for instructions on how to restore TWS settings from external storage
See KB2320 for instructions on transferring settings from one user to another



IB TWS and IB Key Merger into IBKR Mobile

OVERVIEW

The migration for your user depends upon your current use of the apps as follows:

1. Your Smartphone is solely used for trading (IB TWS installed) - Click Here
2. Your Smartphone is solely used for authentication (IB Key installed) -  Click Here
3. Your Smartphone is used for both trading and authentication (IB TWS and IB Key installed) - Click Here
4. Your Smartphone is used for Debit Card transactions (IB Key installed) -  Click Here


You are a user of IB TWS

You have been trading on your smartphone with IB TWS and you have not used IB Key.
1. Upon first launch of the application you will see the following new Home Screen.
Figure 1 is the Home Screen of IBKR Mobile for iOS devices. Figure 2 is the Android device version.


Figure 1                                                     Figure 2

2. Tap on the Trade button.
3. The rest of the application experience is identical to what you have already used in the past.




Access to the other functions from the Trading Screen

If you wish to access the other functions of the IBKR Mobile, such as the Authentication module or the
Debit Card functions:

For iOS (Figure 3)
1. Open the menu ‘More’ (lower right-hand corner of your screen).
2. Scroll to the very bottom of this page
For Android (Figure 4)
1. Open the Application menu
2. Scroll to the bottom section - App Settings



Figure 3



Figure 4


You are an IB Key user

Activation

1. Launch the IBKR Mobile and tap on Authentication.
2. The app will detect the installation of the IB Key and will suggest a course of action - either an
automated migration (Figure 5) on an update and then automated migration.
You can as well choose to manually migrate at a later point.


Figure 5                                                 Figure 6                                                 Figure 7

After the migration is completed, should you run the IB Key standalone application - the one you have
authenticated with in the past - you will see the following screen (Figure 8).


Figure 8



Daily Operation


A. Nothing changes in the daily login experience if you have an Internet connection - the Seamless
Authentication process will be used:
1. Enter your credentials in the corresponding fields (in the TWS, Account Management, WebTrader or
IBKR Mobile). Click on Login.
2. The system will send you a notification on your smartphone’s screen - tap on it.
3. Depending on your device, present your face to the camera or fingerprint on the sensor (iOS) or
enter your PIN code (Android). The system will the automatically proceed with the login.


B. If you have no Internet connection, you will use the IBKR Mobile in Challenge-Response mode:
1. Enter your credentials in the corresponding fields (in the TWS, Account Management, WebTrader or
IBKR Mobile). Click on ‘Login'.
2. Click on the link saying “I did not receive a notification”.
3. Launch the IBKR Mobile and tap on ‘Authentication’.
4. In the field Challenge of your smartphone application enter the values displayed on the Login
Screen. Tap the ‘Generate’ button.
5. Enter the values displayed by your smartphone app into the field Response string on the Login
Screen. Click ‘Login’.



You are a user of both IB TWS and IB Key

1. Please complete first the procedure for the activation of the Authentication module of the IBKR
Mobile app (Click Here).
2. Login to the trading screen by taping on the Trade button of the Home Screen in your new IBKR
Mobile app (Click Here).



You use an IB Debit Card

1. Please complete first the procedure for the activation of the Authentication module of the IBKR
Mobile app (Click Here).
2. On the Home Screen of the IBKR Mobile app tap on the Debit Card button. The rest of the experience
is identical to what you have already used in the past.





How to adjust font size in TWS

Background:

By default, Trader Workstation (TWS) is designed to display in a font size and style which can be read comfortably for the average user across various screen sizes and resolutions. With the advent of new technologies, there has been an exponential push to make monitors with higher display sizes and your layout may need to be further adjusted manually. This document serves to explain how to manually adjust the font size for TWS.

Procedure

To adjust font size throughout TWS:

  1. From the Anchor window, click the Font Size Adjustment icon.
  2. Check the button Adjust window & column widths to ensure all windows will resize automatically to keep the same font:window ratio. (If unchecked, only font size will change but window size will remain the same).
  3. Click the button Smaller or Larger until the font size is correct.
    Notice that the font size will change immediately as you click the button.
  4. Click the Font Size Adjustment icon   when done.

Note: It is possible that currently not all windows will be adjusted in the same way.

IBKR Host and Ports Documentation

Background:

TWS connects to IBKR servers via port 4000 and 4001, if using SSL, and will not operate on any other port. If you are using a proxy server, it needs to be a transparent with both inbound and outbound ports open so that the TWS can function properly.

Below are listed all the gateways, along with the corresponding destination host that might be used by the TWS when you use our services, please allow access to those hosts.

The easiest way to test whether your connection needs any special setup or has been configured properly is to use IBKR's Dedicated Test page, which will provide a dynamic test of your network’s connection against our main trading and market data servers. If a “Success” response is returned, there is nothing more for you to do. If the response is “Failure”, we recommend adding an exception for the new hosts to your network’s configuration or review your changes.

Note: If your network uses a browser proxy, the test page can produce false positives. In this case, or if you are not sure what your network setup is, turn to your network administrators, who can perform ping and telnet tests to the hosts listed below to confirm compliance with the connectivity requirements.

Specs:

CLIENT PORTAL AND WEBSITE

REGION/PRODUCT

SERVER (HOST)

PORTS1

IBKR WEBSITE – AMERICA

www.interactivebrokers.com

443

IBKR WEBSITE – Canada

www.interactivebrokers.ca

443

IBKR WEBSITE – UK

www.interactivebrokers.co.uk

443

IBKR WEBSITE – INDIA2

www.interactivebrokers.co.in

443

IBKR WEBSITE – JAPAN2

www.interactivebrokers.co.jp

443

IBKR WEBSITE – HONG KONG2

www.interactivebrokers.com.hk 443

IBKR WEBSITE – CHINA2

www.ibkr.com.cn 443

IBKR WEBSITE - AUSTRALIA

www.interactivebrokers.com.au 443

CLIENT PORTAL – EAST

gdcdyn.interactivebrokers.com

443

CLIENT PORTAL – CENTRAL

cdcdyn.interactivebrokers.com

443

DISASTER RECOVERY SITE

www.ibgdr.com 80

1: Standard Communication: TCP Port 80 | SSL Communication: TCP Port 443.

2: This IB Server host does not support ping request.

Important Note: If you are accessing Client Portal from a corporate network where the Internet access is provided through a load balancing equipment, you may receive error messages about expired/invalid session and/or missing web content upon or after the login phase. The load balancer cycles your outbound connections over two or more network interfaces to equalize the network workload. Because of this mechanism, your HTTP requests reach our systems from different IP addresses, invalidating your Client Portal session. In this scenario, as a solution, please ask your network administrator or IT group to configure your machine/device for bypassing the load balancer. This will allow your session to remain valid and alive.




DESKTOP TWS

REGION/TOOL

PRIMARY/BACKUP

SERVER (HOST)

PORTS


TWS AMERICA – EAST

PRIMARY

ndc1.ibllc.com


4000 / 4001

BACKUP

ndc1_hb1.ibllc.com


TWS AMERICA – CENTRAL

PRIMARY

cdc1.ibllc.com


4000 / 4001

BACKUP

cdc1_hb1.ibllc.com


TWS EUROPE

PRIMARY

zdc1.ibllc.com


4000 / 4001

BACKUP

zdc1_hb1.ibllc.com

TWS ASIA

PRIMARY

hdc1.ibllc.com

4000 / 4001

BACKUP

hdc1_hb1.ibllc.com

TWS ASIA - CHINA3

PRIMARY

mcgw1.ibllc.com.cn

4000 / 4001

BACKUP

mcgw1_hb1.ibllc.com.cn
TWS AUTO-UPDATE PRIMARY

download.interactivebrokers.com

443

download2.interactivebrokers.com

RISK NAVIGATOR

PRIMARY

risk.interactivebrokers.com

443

TWS CLOUD SETTINGS

PRIMARY

s3.amazonaws.com

443

IB CAM

PRIMARY

ndc1.ibllc.com

4000 / 4001

DIAGNOSTICS REPORTS

PRIMARY

https://wit1.interactivebrokers.com

443

3: Gateway dedicated to clients with accounts assigned to the Hong Kong server, but are physically connecting from Mainland China.







How to check and solve connectivity issues affecting the Trader Workstation (TWS)

Background:

The Trader Workstation (TWS) software needs to connect to our gateways and market data servers in order to work properly. Connectivity issues affecting your local network or your Internet Service Provider network may negatively affect the TWS functionality. In this article we will indicate how to test your connectivity using an automated connectivity test web page.



How to test the connectivity using the automated "IB Connectivity Test" web page?

1) Click on this link: http://www.interactivebrokers.com/cgi-bin/conn_test.pl

2) Please wait until all the tests have been completed and results have been displayed. If you see "Success" as outcome for all tests, your connectivity to IB Servers is reliable at the present moment. No additional connectivity troubleshooting or configuration should be needed.

3) If you see "Fail" as outcome for one or more test/s, please click on the link "Fail" itself in order to display the "IB Network Troubleshooting Guide". That section will help you conduct some manual tests to identify the cause of the failure.

Note for Corporative environments and Proxy server users: the automated "Connectivity Test" page may return misleading results in case your machine is accessing the Internet through a Proxy server. This usually happens if you are connected to a company network. If this is your case, we kindly ask you to contact your Network Administrator or your IT Team and ask them to perform a manual connectivity tests towards the destination servers indicated in the table on the top of the IB automated "Connectivity Test" web page itself. The manual connectivity test should be conducted using destination TCP ports 4000 and 4001. Should they prefer to have the server list in another format or should they need to set up the firewall / IP Management rules, you can forward them this page.



Locating Portfolio Page

The portfolio page allows you to view and montor your current portfolio at the individual position level, including psoition quantity, market value, current bid-ask and profit/loss. Instructions for locating the page vary by trading platform and are outlined below:

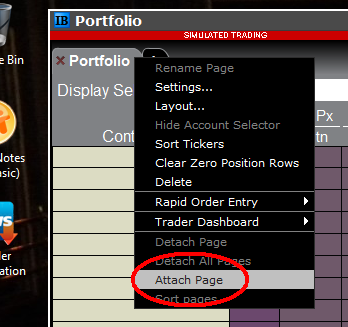

TWS Classic - First check to see if you have detached the page from the main window (an option provided by right clicking on the tab). If this is the case, the page will be open but hidden behind the main window. Minimize the main window by clicking on the minimize icon located in the upper-right hand corner of the screen. If you are able to then view the portfolio page and wish to reattach it, simply right click on the tab to open the menu and select the "Attach Page" option.

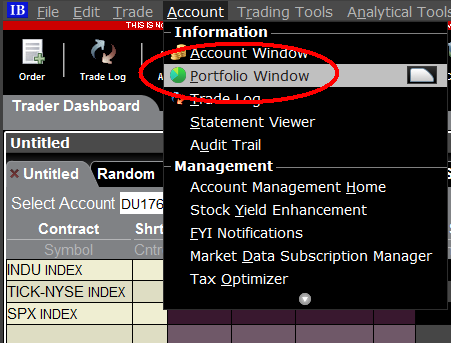

If the page is not detached, select the "Account Window" option from the top menu bar and then "Portfolio Window" menu option.

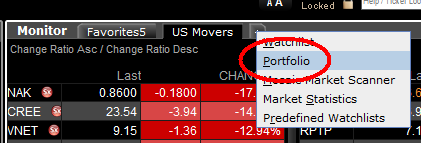

Mosiac - from the Montor window, click on the small + sign located to the right of any existing monitor tabs. Then select "Portfolio" and this page will reappear.





How to start multiple TWS sessions on a Mac

Background:

By default macOS does not allow the user to run multiple sessions of the same application. The following workaround can overcome this limitation in case you need to run the Trader Workstation for more than one user.



  • In case running different versions of the TWS is suitable to your needs, please follow the instructions on Procedure 1

  • In case you need multiple sessions of the same TWS version, please follow the instructions on Procedure 2



Procedure 1

1) Open the web page ibkr.com

2) Navigate to the menu Technology TWS Software.

3) First download and install one of the auto-updating TWS versions (TWS LATEST or TWS according to your preference).

4) Once you have completed the installation, download and install one of the offline versions (OFFLINE TWS LATEST or OFFLINE TWS according to your preference).

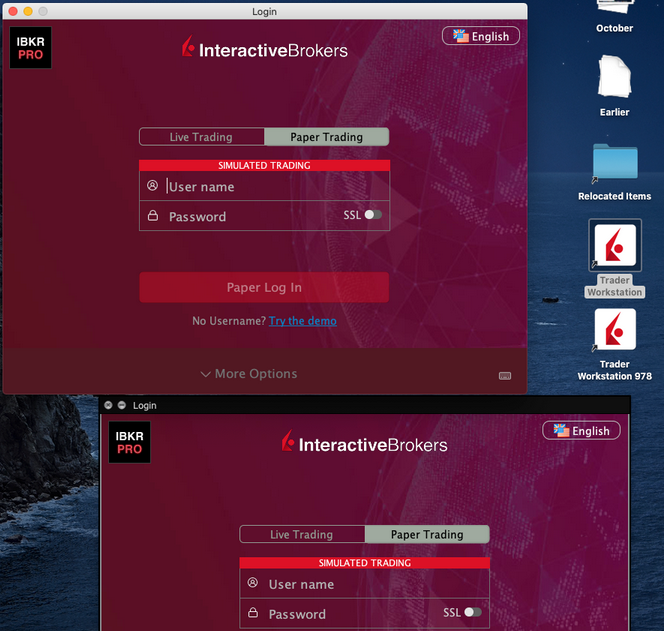

5) You will then see on your Desktop two different Trader Workstation icons. You can use the first shortcut to start the first TWS session and the second one to start the additional one (see Figure 1.). Note: the link containing the version number in the name is the OFFLINE version. This will be a version that needs periodical manual updates.

Figure 1.









Procedure 2

1) Launch the first session of the Trader Workstation using the TWS icon present on your Desktop. If you still do not have any Trader Workstation icon, please go to the web page ibkr.com and click on the menu Technology > TWS Software. Then download and install one of the TWS versions displayed.

2) Open the Finder and click on Applications on the left side menu. Then select Utilities and then launch Terminal (see Figure 2.).

Figure 2.

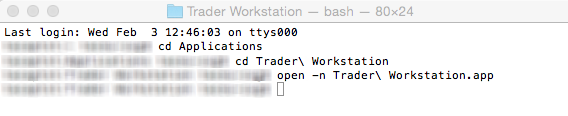

3) The Terminal will appear on the screen and will point to the home folder of your current macOS user. Then enter the commands listed below (see Figure 3.) on your Terminal. After each one, press ENTER on your keyboard.

cd Applications

cd Trader\ Workstation

open -n Trader\ Workstation.app

Figure 3.

4) The login window for your second TWS session will then appear on your Desktop. You can now close the Terminal.



Note: the procedure above presumes that the TWS executable is located in the following path: users/yourusername/home/Applications/Trader Workstation/Trader Workstation.app

If at the time you installed the TWS, you selected to install it for all the users of your system, then the TWS executable will be located here:

/Applications/Trader Workstation/Trader Workstation.app

and therefore you would need to issue the following commands in the Terminal:

cd /Applications

open -n Trader\ Workstation.app



Syndicate content
