Exchange name change

Overview:

Interactive Brokers is completing an effort to update and consolidate exchange names where appropriate. When this effort is complete, the following updates will be in effect:

  • GLOBEX and CMECRYPTO will be consolidated to a single exchange, ‘CME’
  • ECBOT will be updated to ‘CBOT’
  • COMEX listed metals (previously reflected as NYMEX) will be updated to exchange ‘COMEX’
  • NYMEX, no change

Given the breadth of products involved, we are migrating in four waves based on underlying products:

Key Effective Trade Date Products
Wave 1 October 30, 2022 GLOBEX: ZAR, LB, DA, IXE
Wave 2 November 6, 2022 GLOBEX: EMD, BRE, CHF, SOFR3, E7, NKD
CMECRYPTO: BTCEURRR, ETHEURRR, MET
Wave 3 November 13, 2022 GLOBEX: All remaining products
CMECRYPTO: All remaining products
ECBOT: ZO, ZR, 2YY, 30Y
NYMEX: ALI, QI, QC
Wave 4 December 4, 2022 ECBOT: All remaining products
NYMEX: All remaining "Metal" products



I am trading via API, how does this impact me?

For API clients the only requirement would be to provide a new exchange name, for example: exchange=”CME”, for existing contracts for the affected exchanges.

Old exchanges names will no longer be available after the change.

More details can be found within our FAQs through the following link: Upcoming Exchange name Changes

Note: If you are using a third party software connected to TWS or IB Gateway and that software does not recognize the new contract definitions, please contact the third party vendor directly.

Backup RSA Key Pairs

If you use RSA encryption in file exchange communication with Interactive Brokers, best practice requires that this key be backed up for security and retrieval purposes. Creating a backup is quick and ensures the longevity of your Key Pair.

Note: this tutorial assumes you have already set up a Key pair. If you need guidance to set up the Key pair please refer to this article, which is a prerequisite to the instructions below.



Please select one of the below links, according to your Operating System:



Windows

1. Launch the application Kleopatra and select the encryption key you want to transfer. Then right-click on the selection and choose Backup Secret Keys...

Note: Do NOT use Export..., as this will only export the public part of the Key while you need to have a backup of both public and private parts.

2. Select a folder of your preference (e.g. Desktop) and a file name of your preference (e.g. secret-key-KEYID.asc) for your backup copy. Then click Save

3. Enter the passphrase you have set when you created the Key and click OK.

4. A pop-up will confirm the backup has been successfully created. Click OK.



macOS

1. On the machine where the encryption keys are stored, create a new folder (e.g., on your Desktop).

2. Launch the application GPG Keychain and select the encryption key you want to transfer. Please make sure that Sec/Pub is indicated in the Type column.

3. Click the icon Export on the top toolbar. In the field Where, select the folder you previously created. Make sure to check Include secret key in exported file and then click Save as illustrated in the above screenshot.

4. A backup copy of the key pair will be created in the folder you selected.



Related articles

KB3842 - Using GPG/RSA encryption keys to guarantee the privacy and security of your Reports
KB3968 - Generate a key pair using GPG for Windows
KB4205 - Generate a key pair using GPG Suite on macOS
KB4108 - Decrypt your Reports using GPG for Windows
KB4210 - Decrypting Reports using your PGP Key pair on macOS
KB4407 - Generate RSA Key Pair on Windows
KB4578 - How to Access your Reports using FTP on Windows
KB4580 - How to Access your Reports using FTP on MacOS
KB4410 - How to set up sFTP for using Certificate Authentication on macOS
KB4323 - How to transfer your public/private key pair from one computer to another




How to Set Up sFTP for Using Certificate Authentication on macOS

These instructions apply to users who are receiving their statements via sFTP. If you elected to receive your statements that way, you would first need to generate an RSA Key pair. If you need guidance to set up the Key pair, please refer to this article, which is a prerequisite to the instructions below.

Note: There are many sFTP Clients available for macOS, either licensed or freeware. In this procedure we will refer to FileZilla, which is free of charge, but you can use a different one. FileZilla for macOS can be downloaded here.

1. Once you have installed FileZilla, launch it.

2. Click on File in the top left and select Site Manager:

3. If you see an existing Interactive Brokers sFTP site in the list, jump directly to point 6. If you do not have such site configured yet, Click New Site and select SFTP – SSH File Transfer Protocol as Protocol:

4. Change Logon Type from Normal to Key File and click on Browse to select the corresponding Private Key file from the designated directory where it is saved.

5. Enter:
  • xfer.interactivebrokers.com in the Host field.
  • 32 in the Port field.
  • The username given you by Interactive Brokers in the User field.

6. Click Connect. Once successfully connected, you will be able to drag files from the Remote site (right side panel) to the Local machine (left side panel). In this way you will download the files on your local machine.



Common issues and solutions

A. The Login Credentials Provided are Incorrect
  1. Ensure the correct login details are being used to connect to the sFTP server. The username and password you are entering should match the ones you have received from the Reporting Integration Team.
  2. Confirm you have configured your sFTP Client to use the Private Key file for the logon authentication (see step 4. of the above procedure.)
B. Server Refused Our Key
  1. Try accessing the sFTP server using a different Client (FileZilla, WinSCP, CyberDuck, ect.)
  2. Ensure the Private Key file being used to Authenticate the server login attempt is related to the Public Key you originally sent to the Reporting Integration Team.
  3. Should the above checks be unable to resolve the issue, please generate a new RSA Public/Private Key pair and send only the Public part to the Reporting Integration Team, as per IBKB3842.
C. Connection Timed Out
  1. In case you have an antivirus or a security software installed on your machine, make sure it is not blocking the FTP connection attempt. Normally, security software allows to set up exceptions for specific connections in order to whitelist them.
  2. Verify that the public IP Address of the machine running the sFTP client, is the same you have originally provided to the Reporting Integration Team for being whitelisted. You can discover your public IP Address by searching the Internet for “what is my IP”. If your current IP Address is not the same you provided to us, please send it to our Reporting Integration Team for being whitelisted.
  3. Ask your network administrator/s to confirm that your firewall allows both incoming and outgoing traffic from/to xfer.interactivebrokers.com on port TCP 32.
  4. Should the above steps be unable to resolve the issue, please generate a new RSA Public/Private Key pair and send only the new Public part to our Reporting Integration Team, as per IBKB3842.



Related articles

KB3842 - Using GPG/RSA encryption keys to guarantee the privacy and security of your Reports
KB3968 - Generate a key pair using GPG for Windows
KB4205 - Generate a key pair using GPG Suite on macOS
KB4108 - Decrypt your Reports using GPG for Windows
KB4210 - Decrypting Reports using your PGP Key pair on macOS
KB4407 - Generate RSA Key Pair on Windows
KB4578 - How to Access your Reports using FTP on Windows
KB4580 - How to Access your Reports using FTP on MacOS
KB4409 - How to set up sFTP for using Certificate Authentication on Windows
KB4411 - How to backup your public/private Key pair
KB4323 - How to transfer your public/private key pair from one computer to another


How to Set Up sFTP for Using Certificate Authentication on Windows

These instructions apply to users who are receiving their statements via sFTP. If you elected to receive your statements that way, you would first need to generate an RSA Key pair. If you need guidance to set up the Key pair, please refer to this article, which is a prerequisite to the instructions below.

1. Start WinSCP.

2. Click on Session and select New Session.

3. If you see an existing Interactive Brokers sFTP site in the list, select it and jump directly to point 5. If you do not have such site configured yet, enter:
  • xfer.interactivebrokers.com in the Host name field.
  • 32 in the Port number field.
  • The username provided to you by Interactive Brokers in the User name field.

Select SFTP as File protocol:

4. To ensure the session is using the appropriate Private Key file, Click Advanced > Authentication. Verify that the Private Key file field has the appropriate Key file selected. Click OK.

5. Click Login to connect with the sFTP host and retrieve reports in clear text.

6. Drag documents from the right side panel (sFTP host site) to the left side panel (local machine host).



Common issues and solutions

A. The Login Credentials Provided are Incorrect
  1. Ensure the correct login details are being used to connect to the sFTP server. The username and password you are entering should match the ones you have received from the Reporting Integration Team.
  2. Confirm you have configured your sFTP Client to use the Private Key file for the logon authentication (see step 4. of the above procedure.)
B. Server Refused Our Key
  1. Try accessing the sFTP server using a different Client (FileZilla, WinSCP, CyberDuck, ect.)
  2. Ensure the Private Key file being used to Authenticate the server login attempt is related to the Public Key you originally sent to the Reporting Integration Team.
  3. Should the above checks be unable to resolve the issue, please generate a new RSA Public/Private Key pair and send only the Public part to the Reporting Integration Team, as per IBKB3842.
C. Connection Timed Out
  1. In case you have an antivirus or a security software installed on your machine, make sure it is not blocking the FTP connection attempt. Normally, security software allows to set up exceptions for specific connections in order to whitelist them.
  2. Verify that the public IP Address of the machine running the sFTP client, is the same you have originally provided to the Reporting Integration Team for being whitelisted. You can discover your public IP Address by searching the Internet for “what is my IP”. If your current IP Address is not the same you provided to us, please send it to our Reporting Integration Team for being whitelisted.
  3. Ask your network administrator/s to confirm that your firewall allows both incoming and outgoing traffic from/to xfer.interactivebrokers.com on port TCP 32.
  4. Should the above steps be unable to resolve the issue, please generate a new RSA Public/Private Key pair and send only the new Public part to our Reporting Integration Team, as per IBKB3842.



Related articles

KB3842 - Using GPG/RSA encryption keys to guarantee the privacy and security of your Reports
KB3968 - Generate a key pair using GPG for Windows
KB4205 - Generate a key pair using GPG Suite on macOS
KB4108 - Decrypt your Reports using GPG for Windows
KB4210 - Decrypting Reports using your PGP Key pair on macOS
KB4407 - Generate RSA Key Pair on Windows
KB4578 - How to Access your Reports using FTP on Windows
KB4580 - How to Access your Reports using FTP on MacOS
KB4410 - How to set up sFTP for using Certificate Authentication on macOS
KB4411 - How to backup your public/private Key pair
KB4323 - How to transfer your public/private key pair from one computer to another



Considerazioni sulla sicurezza a seguito nel caso di esclusione del SAS (Sistema di Accesso Sicuro)

Overview:

I titolari di conti che hanno scelto di escludere l'opzione del Sistema di Accesso Sicuro (SAS) offerta da IBKR, rinunciano a tutti gli effetti alla protezione garantita dall'Autenticazione a due livelli. Invitiamo i clienti che decidano di seguire questa scelta a utilizzare misure di sicurezza alternative come quelle note come Restrizioni IP. Selezionando questa opzione attraverso il Client Portal, comunichi a Interactive Brokers che vuoi accedere esclusivamente alle tue piattaforme di trading da uno specifico indirizzo IP. Inoltre, in caso tu abbia molti trader autorizzati per un dato conto, queste restrizioni posso essere impostate al livello di trader individuale per scelta del utilizzatore principale del conto (master user) .



Lista delle cose da fare:

Prima di impostare le Restrizioni IP, verifica di avere svolto quanto elencato qui di seguito:

  • Conoscere il tuo indirizzo WAN IP. Si tratta dell'indirizzo IP esposto sul lato esterno (Internet) della tua rete ed è diverso dal tuo indirizzo IP locale (anche noto come indirizzo LAN IP). Se fai trading da un ufficio appartenente ad una data azienda, puoi chiedere al dipartimento IT o Reti Informatiche maggiori dettagli sull'indirizzo WAN IP del tuo computer. Se ti colleghi a Internet attraverso una connessione privata a banda larga/via cavo/satellite puoi ottenere questa informazioni dal tuo ISP (Internet Service Provider, ossia il tuo provider).
  • Assicurati che il tuo indirizzo IP sia statico. Il tuo indirizzo IP rimarrà sempre lo stesso e non cambierà riavviando il router/modem e subirà variazioni dopo un certo periodo di tempo. La stessa entità che ti ha fornito l'indirizzo WAN IP potrà inoltre fornire chiarimento per capire se il tuo indirizzo sia statico o dinamico.
  • Ti ricordiamo che le Restrizioni IP non saranno immediatamente attive. I nostri sistemi applicano i filtri durante il riavvio giornaliero che avviene durante la notte. L'attivazione di questa misura alternativa potrebbe diventare effettiva nell'arco di 24 ore. Molto dipenderà dall'orario relativo a quando hai inviato la richiesta per le Restrizioni IP. Lo stesso varrà per eventuali modifiche o per la rimozione di Restrizioni IP esistenti. Ti invitiamo a tenere conto di questi aspetti quando pianifichi di eseguire delle operazioni relative a questo tipo di restrizioni.
  • Le Restrizioni IP verranno applicate a TUTTE le piattaforme di trading offerte da IBKR. L'accesso al Client Portal non sarà vincolato a queste restrizioni. Sarà infatti possibile accedere al Client Portal da qualunque indirizzo IP.

Note:

Ti invitiamo a tenere conto del fatto che resta possibile clonare o riprodurre l'indirizzo IP di un utente. Per una protezione completa del conto è garantita solo attraverso l'Autenticazione SAS a due livelli (ibkr.com/sls).

In caso di domande su questo argomento, potrai contattare in qualunque momento il Centro di Assistenza tecnica di IBKR.

Come impostare le Restrizioni IP:

  1. Accedi al Client Portal e clicca sull'icona del menu

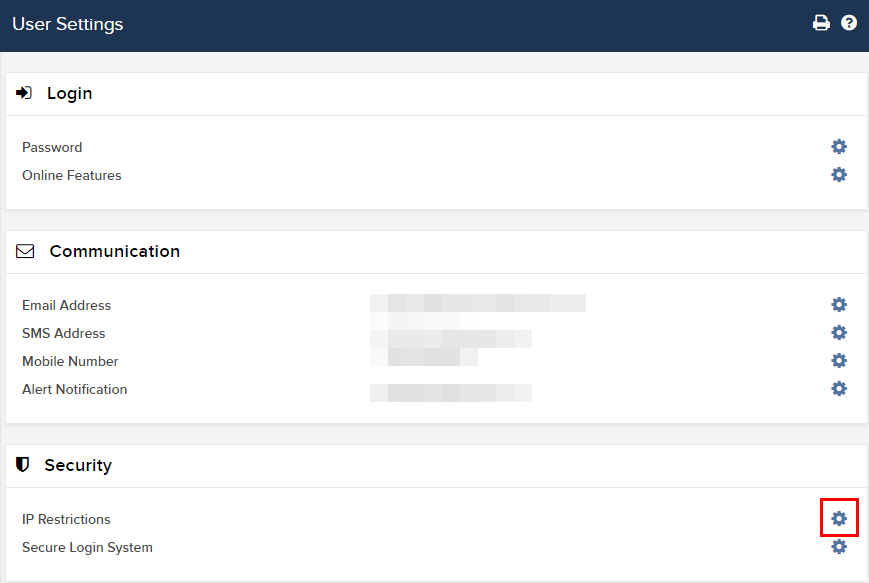

  2. Dal menu clicca su Impostazioni e successivamente su Impostazioni Utente. Quindi clicca sull'icona rotellina (configura) accanto a Restrizioni IP.

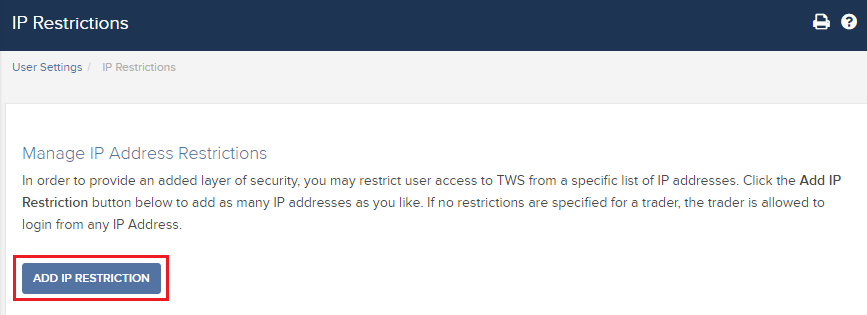

  3. Comparirà una breve descrizione sugli effetti delle Restrizioni IP. Per impostare una nuova Restrizione IP clicca su Aggiungi Restrizione IP.

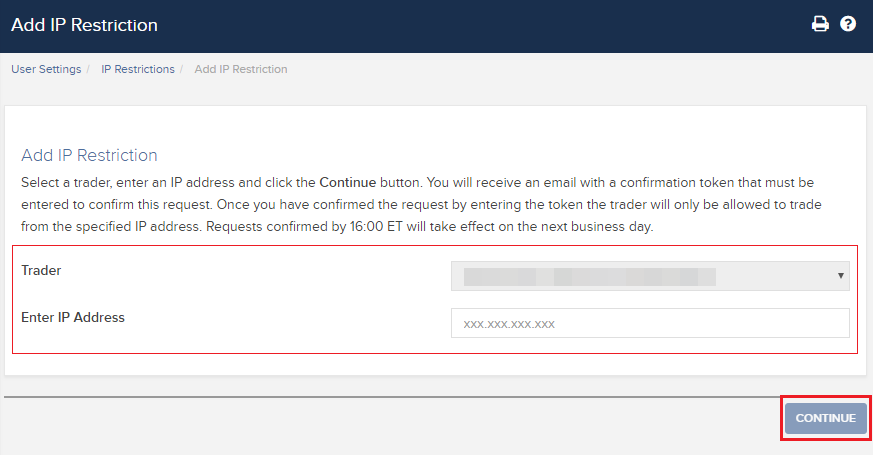

  4. Seleziona la voce Trader dal menu a tendina e inserisci l'Indirizzo IP per il quale desideri consentire l'accesso (nel formato xxx.xxx.xxx.xxx) . Quindi clicca su Continua.
  5. Se hai effettuato l'accesso al Client Portal senza usare l'autenticazione a 2 livelli, riceverai una email1 che contiene un Numero di Conferma. Inserisci il numero ricevuto nel campo Numero di Conferma . Una volta completato questo passaggio, clicca su Continua per inviare la richiesta. Se hai effettuato l'accesso al Client Portal utilizzando un dispositivo di sicurezza, prosegui direttamente al punto 6.

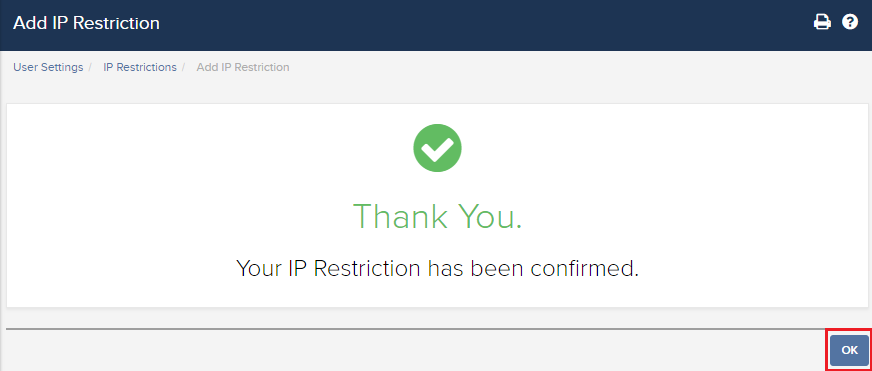

  6. Se l'operazione è andata a buon fine, comparirà un messaggio di conferma sullo schermo. Clicca su OK.

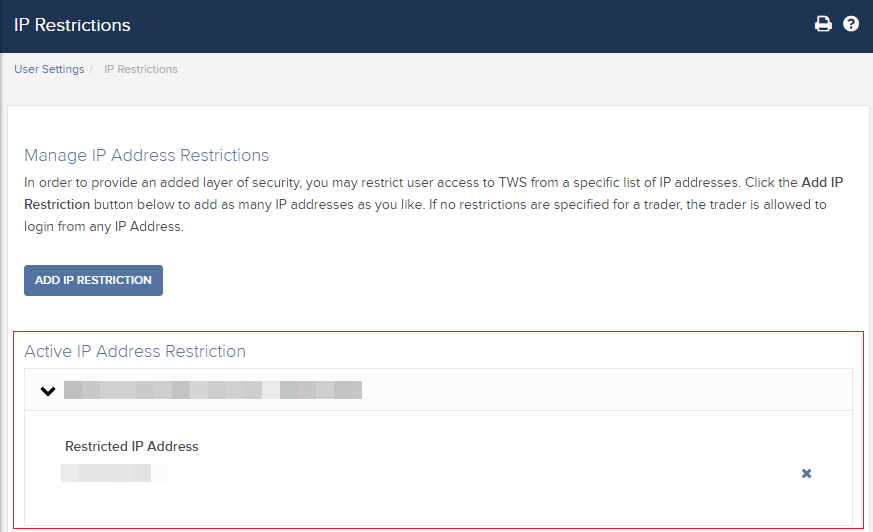

  7. Adesso il sistema mostrerà l'elenco delle Restrizioni IP attive. Se desideri aggiungere un'altra restrizione, clicca di nuovo su Aggiungi Restrizione IP, in caso contrario puoi lasciare questa sezione.



Rimozione e Restrizioni IP per i trader di Penny Stocks:

I clienti che hanno scelto di non usare il SAS (Sistema di Accesso Sicuro) e che quindi utilizzano l'Autenticazione a due livelli solo per il Client Portal, devono attivare le Restrizioni IP in modo da poter attivare i permessi relativi al trading di Penny Stocks.


Ulteriori pratiche virtuose per proteggere il tuo computer e la tua rete

  • Quando accedi a TWS, attiva l'opzione “Utilizza SSL” dalla schermata di accesso. L'SSL (Secure Socket Layer) garantisce che tutte le informazioni scambiate tra il tuo computer e i server siano protette tramite criptaggio a 128 bit .
  • Usa un firewall per prevenire accessi non autorizzati ai servizi non protetti sul tuo network e/o computer. Quando stabilisci le impostazioni del firewall, assicurati di autorizzare l'host/le porte elencate nella sezione DESKTOP TWS dell'articolo KB2816.
  • Usa un software antivirus per identificare ed eliminare virus che potrebbero infettare il tuo computer.  Dato che nuovi virus vengono creati di continuo, è importante aggiornare regolarmente il database delle minacce del tuo software antivirus.
  • Ti consigliamo di usare un software anti-malware per identificare e rimuovere programmi spyware/malware. Attualmente molte soluzioni antivirus includono una protezione contro i malware.
  • Evita di accedere a connessioni wireless pubbliche (Wi-Fi), non protette o che non coincidono con quelle del tuo operatore. Nel caso sia necessario ricorrere ad una rete non protetta (ad es. una postazione Wi-Fi pubblica) ti suggeriamo di non accedere a qualunque conto di tua proprietà presso delle istituzioni finanziarie, incluso il tuo conto IBKR.



Note:
1. Se non hai ricevuto l'email, assicurati che non sia finita nella posta indesiderata della tua casella di posta elettronica ed eventualmente aggiungi i seguenti indirizzi donotreply@interactivebrokers.com e help@interactivebrokers.com alla lista dei mittenti affidabili. Puoi richiedere l'invio di una nuova email presso il tuo indirizzo. Basterà cliccare sul pulsante Invia di nuovo il Numero di Conferma.



SEC Tick Size Pilot Program FAQs

Tick Size Pilot ("TSP" or "Pilot") Program:

Under the TSP Program,  if IBKR receives any order in a Pilot Security that does not conform to the designated pricing increment (e.g., a limit price in a $0.01 increment for a security designated as trading $0.05 increments), IBKR will REJECT that order, subject to limited exceptions. IBKR strongly encourages a thorough review of your software or your vendor’s software to understand the criteria for what causes an order in a Pilot Security to be rejected to permit you or your vendor to make changes to correctly handle orders in Test Group Pilot Securities.


FREQUENTLY ASKED QUESTIONS:



Q: Is the Tick Size Pilot program still ongoing?
A: On March 29, 2019 the data collection requirements under the National Market System (NMS) plan to implement a Tick Size Pilot Program (Tick Size Pilot) ended. As a result, the Pilot Security File and Change File will no longer be produced on a daily basis. At the conclusion of the pilot, a blank Tick Size Pilot Securities file will be produced and the Change File will be updated to show the deletion of securities from the Tick Pilot Size list.



Q: What is the Tick Size Pilot?
A: On May 6, 2015, the SEC approved an amended TSP NMS Plan. The Pilot will be two years in length. Data collection for the Pilot began on April 4, 2016, 6 months prior to the implementation of the trading and quoting rules for the Pilot. Implementation of the trading and quoting rules for the Pilot will begin on October 3, 2016.

The Pilot will be conducted using a Control Group and three Test Groups where variations in quoting and trading rules exist between each group. Please see the TSP NMS Plan for additional information.



Q: Will the Pilot quoting and trading rules apply during regular market hours, pre-market hours and post market hours?
A: The Pilot rules apply during all operational hours (pre-market, regular hours, and post market hours trading).



Q: Will the Pilot quoting and trading rules apply to odd-lot and mixed-lot sizes?
A: Yes, the Pilot rules to all order sizes.



Q: Will orders in Control Group Securities be accepted in price increments of less than $0.05?
A: Yes, orders submitted in price increments of less than $0.05 will continue to be accepted in Control Group securities.



Q: Will orders in a Test Group 1, 2 or 3 Pilot Securities be accepted in price increments of less than $0.05?
A: No, unless covered by an exception, orders submitted in price increments of less than $0.05 will be rejected.



Q: Which Pilot Security Orders in Test Groups will Interactive Brokers accept at other than $0.05 increments?
        Midpoint orders with no explicitly stated limit price or impermissible offsets will be accepted
        VWAP orders that do not have an explicitly stated limit price or impermissible offsets will be accepted.
        Interactive Brokers will accept Exchange operated Retail Price Improvement orders as follows:
                  Test Group 1 in $0.001 price increments
                  Test Groups 2 and 3 in $0.005 price increments.



Q: Will there be any changes to the Opening / Closing processes on Exchanges?
A: Please refer to each of the exchange rules for details but in general, there will be no changes to the Opening / Closing process. All orders entered and eligible to participate in Exchange Opening / Closing Cross will be accepted in increments of $0.05. The Exchanges will begin publishing all quotes in increments of $0.05; however, Net Order Imbalance Indicator prices may be published in increments of $0.025.



Q: What will happen to my GTC order that was placed prior to October 3rd in a Pilot Stock that was priced in impermissible tick increments?
A: Interactive Brokers will adjust outstanding limit and stop GTC orders in Pilot stocks in Test Groups that are not in permissible tick increments (e.g., a buy limit order at $5.01 will be adjusted to $5.00 and a sell limit at $5.01 adjusted to $5.05).



Q: What will happen to my GTC order placed after October 3rd that was placed and accepted in a nickel tick increment but the Pilot Stock moves from a Test Group to the Control Group that permits non-nickel increments?
A: The GTC order will automatically be able to be revised by the user in non-nickel increments on the date the Pilot stock moves from the Test Group to the Control Group. Similarly, if a stock is added to Test Group due to a corporate action, IBKR will cancel the GTC order if it is priced in impermissible increments.



Q: Where can I find out more information?

A: See KB2752 or the FINRA website for additional details regarding the Pilot Program: http://www.finra.org/industry/tick-size-pilot-program

How to fix the error: "Library dbcapi.dll cannot be loaded"

Background:

TWS users may receive the following error message upon configuring TWS to use the eSignal data feed:


This error may appear for the following reasons:

Issue A - You are not using the 32 bit version of TWS and/or eSignal:
The 32-bit versions of both TWS and eSignal have to be installed for the integration to work. In the section below you will find the instructions for installing the 32-bit TWS. Should you need assistance with the installation of the 32-bit eSignal, we suggest you to contact the eSignal customer support.

Issue B - There is an incompatibility with the file C:\Jts\dbcapi.dll:
To use 32-bit eSignal version 12, an incompatibility with the C:\Jts\dbcapi.dll file must be fixed. This involves copying a file from the eSignal installation and renaming it to dbcapi.dll.

Note: On certain systems you will need to apply the fixes for both issue A and B. If you applied the fix for issue A (or if you are already sure you are using the 32 bit version of both platforms) and you are still receiving the error message, then please apply as well the fix for issue B.



Instructions to resolve issue A
Installing 32-bit TWS

Please open the page http://www.ibkr.com in your browser and perform the steps below:

1) Click on the Log In button at the top right corner of the page.

2) Click on Download Trader Workstation:

3) Click on the red button TWS Latest:

4) On the next page, click on the link Download for Other Operating Systems:


5) Click on the item Windows 32-bit:

6) Make sure that the description under the DOWNLOAD button has changed to "Windows: 32 bit". Click now on DOWNLOAD:

7) Launch the downloaded file. The Trader Workstation installation will start. At this point, you may see the warning message "Trader Workstation latest is already installed...". Ignore this warning and click on the button Next > to continue the installation:



8) Your "Trader Workstation" Desktop icon will be automatically updated. You can now launch the 32-bit Trader Workstation by a double click on that icon.

If you have launched the 32-bit TWS and the 32 bit version of eSignal but you still receive the same error message, please follow as well the instructions below.



Instructions to resolve issue B
Replacing dbcapi.dll for compatibility between 32-bit TWS and 32-bit eSignal 12

To correct an incompatibility with the dbcapi.dll file, we will replace that file with another version of it taken from the eSignal installation folder. Please follow the steps below to perform the substitution:

1) Navigate to C:\Jts and rename the file dbcapi.dll to dbcapi_old.dll

2) Navigate to the directory where 32-bit eSignal 12 is installed (most commonly C:\Program Files (x86)\Common Files\Interactive Data\DM).

3) Copy dbcapi_vc8.dll from that directory into the C:\Jts directory.

4) Move to the C:\Jts directory.

5) Right click on the dbcapi_vc8.dll file (now in the C:\Jts directory) and select rename. Type dbcapi.dll as the new filename.

6) TWS is now ready to accept the eSignal data feed.



How to install the TWS API Components on Mac / Unix

NOTE: If you have already agreed to the API License Agreement please start at Step 3 below.

Instructions

  1. Click directly on the button below to access the API software download page
  2. This will direct you to Interactive Brokers API License Agreement, please review it
  3. Once you have clicked "I Agree", refer to the Mac / Unix section to download the API Software version of your preference
    API Software Download List
  1. This will download twsapi_macunix.n.m.zip to your computer
    (where n and m are the major and minor version numbers respectively)
  2. Open Terminal (Ctrl+Alt+T on most distributions)
    (On Mac press Command+Space to launch Spotlight, then type terminal and press Return)
  3. Navigate to the directory where the installer has been downloaded (normally it should be the Download folder within your home folder) and confirm the file is present

     $  cd ~/Downloads
     $  ls

  1. Unzip the contents the installer into your home folder with the following command (if prompted, enter your password):
    $  sudo unzip twsapi_macunix.n.m.zip -d $HOME/
    Installation directions Step 3 and Step 4
  2. To access the sample and source files, navigate to the IBJts directory and confirm the subfolders samples and source are present
    $  cd ~/IBJts
    $  ls
    Installation directions Step 5




Legacy Instructions - API Version ≤ 9.71

Note: IB only offers API Version 9.72+. In the event you already have an existing legacy version and need to install it, please refer to the directions below:

  1. locate the file twsapi_macunix.n.m.jar on your computer
    (where n and m are the major and minor version numbers respectively.)
  2. Open Terminal (Ctrl+Alt+T on most distributions)
    (On Mac press Command+Space to launch Spotlight, then type terminal and press Return)
  3. Navigate to the directory where the .jar file has been located (normally it should be the Download folder within your home folder) and confirm it is present
    cd ~/Downloads
    $  ls
  4. Extract the contents of the .jar file into your home folder
    $  jar xf twsapi_macunix.n.m.jar -d $ HOME/
  5. To access the sample and source files, navigate to the IBJts directory and confirm the subfolders samples and source are present
    $  cd ~/IBJts
    $  ls



How to fix the error: "Ddedll.dll file missing or out of date"

Background:

TWS users running add-on applications in Excel using DDE on a Windows 64-bit operating systems may receive the following error message upon log in or when enabling the DDE client:



This message is usually displayed for the following reasons:

Issue A - You are not using the 32-bit version of TWS

You are running an instance of TWS that is using the 64-bit version of the Java Virtual Machine while attempting to load the ddedll.dll library, which has been compiled for 32-bit Java. This error can be corrected by re-installing TWS 32-bit from IB website.

Issue B - The API components have not been installed

The API Components (and consequently the library ddedll.dll) have not yet been installed but you already enabled the DDE Client Connection for TWS. This error can be corrected by installing the API Components.

Note: On certain systems you will need to apply the fixes for both issue A and B. If you applied the fix for issue A (or if you are already sure you are using the 32 bit version of the TWS) and you are still receiving the error message, then please apply as well the fix for issue B.



Instructions to resolve issue A
Installing 32-bit TWS

Please open the page http://www.ibkr.com in your browser and perform the steps below:

1) Click on the Log In button at the top right corner of the page.

2) Click on Download Trader Workstation:




3) Click on the red button TWS Latest:

4) Click on the link Download for Other Operating Systems:


5) Click on the item Windows 32-bit:


6) Please make sure that the description under the DOWNLOAD button has changed to "Windows: 32 bit". Then click on DOWNLOAD:


7) Launch the downloaded file. The Trader Workstation installation will start. At this point you may see the warning message "Trader Workstation latest is already installed...". Ignore this warning and click on the button Next to continue the installation:


8) Your Trader Workstation Desktop icon will be automatically updated. You can now launch the 32-bit Trader Workstation by a double click on that same icon.


If you have installed and launched the 32-bit TWS but you are still receiving the same error message, please proceed with the instructions below.

Back to top



Instructions to resolve issue B
Installing the API components

9) Click the GET API SOFTWARE button below:

10) This will direct you to Interactive Brokers API License Agreement, please review.

11) Click the I Agree button at the bottom:

12) Under the section Windows on the left side, download one of the IB API packages listed and install it:

13) Once the installation has completed, log back into TWS.




Other Items:

Please be aware that there are some programs that can effect the legacy DDE Client connections, for example: Chrome, VLC Player, Adobe Creative Cloud or Microsoft One Drive. In case you are using these programs, please keep them closed while you are using the Excel DDE workbook.

The newer DDE version uses a Java socket based on 64-bit, and should no longer have any conflicting software.



Compatibility between MetaTrader and Interactive Brokers

Overview:

Interactive Brokers (IBKR) provides to its account holders a variety of proprietary trading platforms at no cost and therefore does not actively promote or offer the platforms or add-on software of other vendors. Nonetheless, as IBKR's principal trading platform, the TraderWorkstation (TWS), operates with an open API, there are numerous third-party vendors who create order entry, charting and various other analytical programs which operate in conjunction with the TWS for purposes of executing orders through IBKR. As these API specifications are made public, we are not necessarily aware of all vendors who create applications to integrate with the TWS but do offer a program referred to as the Investors Marketplace which operates as a self-service community bringing together third party vendors who have products and services to offer with IBKR customers seeking to fill a specific need.

While MetaQuotes Software is not a participant of IBKR's Investors Marketplace, they offer to Introducing Brokers the oneZero Hub Gateway so that MetaTrader 5 can be used to trade IBKR Accounts[1]. Clients interested would need to contact oneZero directly for additional assistance. Please refer to the Contact section from the following URL.

Note: Besides oneZero Hub Gateway, different vendors such as Trade-Commander, jTWSdata and PrimeXM also offer a software which they represent, acts as a bridge between MetaTrader 4/5 and the TWS. As is the case with other third-party software applications, IBKR is not in a position to provide information or recommendations as to the compatibility or operation of such software.



1: oneZero is not available for Individual Accounts, please click here for more information on Introducing Brokers.





Syndicate content
